Napl TAC16P single-phase power controller for voltage regulation/power regulation

Napl TAC16P single-phase power controller integrating voltage regulation and power regulation

Maximum Current 1500A

                                                                  选型单下载  简约版选型单下载  说明书下载



New product developed by applying high-power  solid-state relay  (SSR) technology

Integration of single-phase voltage regulation and power regulation, selectable power regulation mode: cycle or duty-cycle (PWM)

Microprocessor digitization design, phase-locked loop synchronous circuit, 3VAC low-voltage start-up, slow start-up after powerup, slow turn-off, heatsink over-temperature alarm, current limit, over-current protection, manual/automatic switching balanceless, etc.

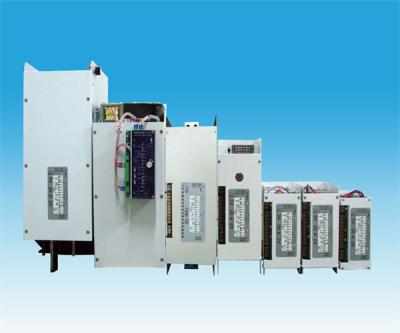

current capacity30A  50A  80A  105A  150A  195A  255A  300A  600A

   1000A  1500A (click on the current to see photographs)

Control PCB voltage220V AC/380V AC

Applicable to resistive load and inductive load, capable of effectively controlling loads such as SiC rod, Silicon molybdenum rod,

electric heating tube, nichrome wire, transformer, etc.

I. Selection Form

项目

型号代码



单相电力

调整器

TAC16P

基本功能:移相调压, 锁相环同步,变宽脉冲触发

调节分辨率:0.2°(调压), 20ms(调功)

缓启动时间:0.2~120秒可调

缓停时间:10

报警输出:常开接点 1A 250V AC

环境温湿度:0~4090%RH最大

控制输入

4-

4~20 mA DC,接收电阻:100Ω

6-

0~10 V DC, 输入电阻:450KΩ

控制板电源

22-

220V AC±10% 50HZ

38-

380V AC±10% 50HZ

90-

电压:220V380V AC±10%

频率:50HZ/60HZ自适应

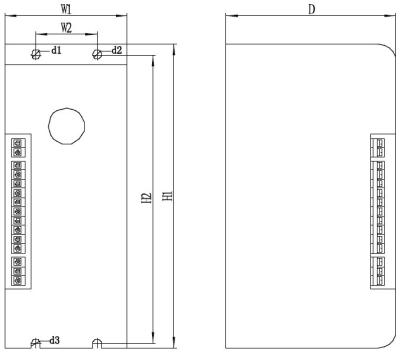

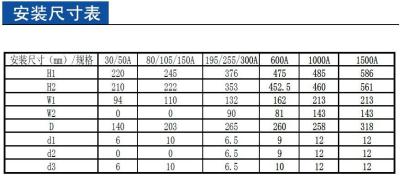

电流容量/外形尺寸mm

(一般纯阻负载,阻值恒定)

030-

30A     220×94×140

050-

50A     220× 94×140

080-

80A     245×110×203

105-

105A    245×110×203

150-

150A    245×110×203

195-

195A    376×132×265

255-

255A    376×132×265

300-

300A    376×132×265

600-

600A    475×162×260

1000-

1000A   485×213×258

1500-

1500A   586×213×318

电流限制和过流报警

(选件)

N

C

带电流限制功能和过流报警

I

带恒流、电流限制功能和过流报警功能

V

带恒压功能

调功方式

(选件)

00

01

阻性调功

04

感性调功

快熔(选件)

N

F

带快速熔断器

II. Ordering Information:

1Reference for selection of current capacity of power controller

  • Common pure resistance load: the current capacity of the selected power controller must be greater than the maximum current of the load.
  • SiC Rod Load: when the transformer is removed, SiC rod should be connected in series, so that it can withstand at least 70%~80% of the power supply voltage. As for the SiC rod, there will be a negative impedance region when the temperature ranges from 700 to 800, and the selected current capacity should be 1.3 times greater than the current of the load.
  •  Electric Heating Tube Load: the electric heating tube load can be easily affected with damp as well as partial short circuit, and the selected current capacity should be 1.3 times greater than the current of the load.
  • Transformer Load: current limit function should be provided, and the current capacity of the selected power controller should be 1.5 times greater than the current of the load.
  • Order ExampleTAC16P4-22-080-N00F

1Example 1:TAC16P4-22-080-N00F is defined as follows :

TAC16P single-phase power controller, 4~20mA control signal input, power suppy voltage of control PCB and load 220V, current capacity 80A, provided with quick fuse (Maximum current of pure resistance load 80A; Maximum current of SiC stick load and electric heating tube load 62A; Maximum current of transformer load 53A )

Example 2:TAC16P-90-080-I00F is defined as follows:



TAC16P single-phase power controller, 4~20mA control signal input, power supply voltage of control PCB 220VAC/380VAC, frequency 50HZ/60HZ, current capacity 80A (Maximum current of pure resistance load 80A; Maximum current of SiC stick load and electric heating tube load 62A; Maximum current of transformer load 53A ), provided with constant current control, current limit, and over-current alarm, as well as quick fuse.
